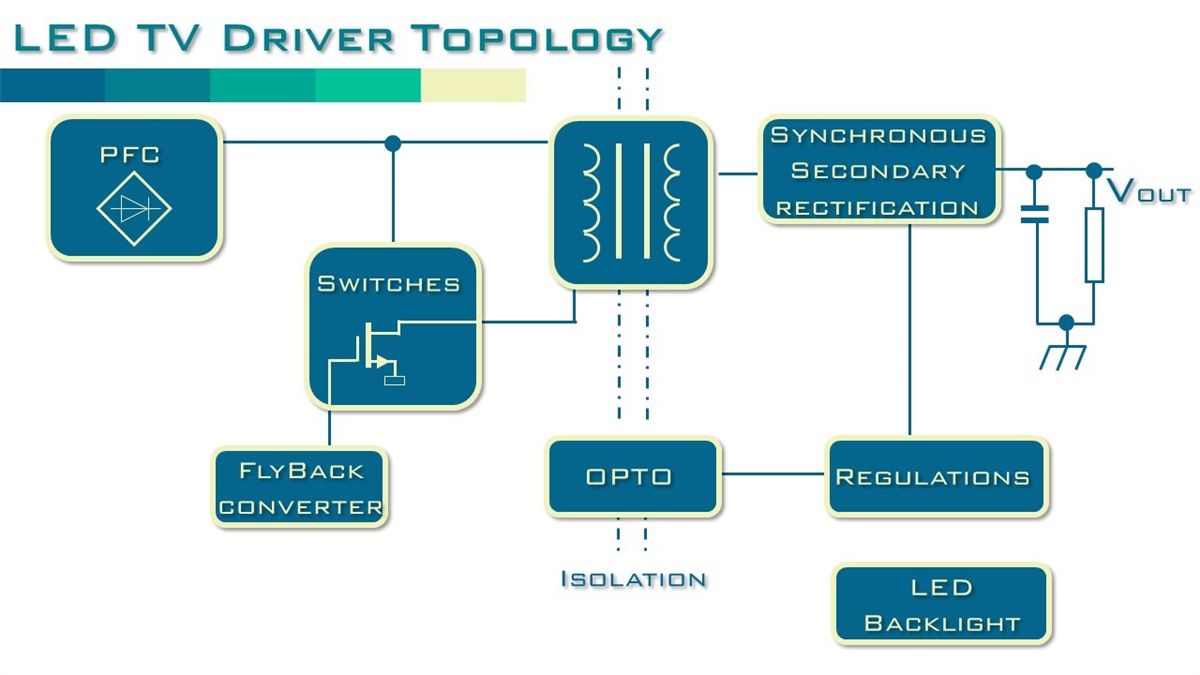

LED Monitor TV Driver Topology
LED TV / Monitor Application Recommended Device
| Application | Function | Spec. | Package Type | Recommended Parts |
|---|---|---|---|---|
| LED Backlight | Low Voltage MosFET | N-CH 100V 66mOhm | TO-252-2L | PAN00T28X |
| N-CH 100V 100mOhm | TO-252-2L | PAN00T34X | ||
| N-CH 100V 112mOhm | TO-252-2L | PAN00T04X | ||
| N-CH 100V 152mOhm | TO-252-2L | PAN00T14X | ||
| N-CH 150V 92mOhm | TO-252-2L | PAN20N15X | ||
| Dimming Ctrl. | Low Voltage MosFET | N-CH 100V 320mOhm | SOT-223 | PAN00T08QB |
| N-CH 100V 320mOhm | SOT-23 | PAN0018N | ||
| N-CH 100V 320mOhm | SOT-89 | PAN00T08K | ||
| N-CH 100V 320mOhm | TO-252-2L | PAN00T08X | ||
| N-CH 150V 250mOhm | TO-252-2L | PAN10N15X | ||
| Power Regulators | Schottky | 1.0A / 40V Low VF=0.45V | SOD-123HE | SS1040LHE |
| 2.0A / 40V Low VF=0.45V | SOD-123HE | SS2040LHE | ||
| 3.0A / 40V | SMA | SK34 | ||
| TVS | 200W series | SOD-123FL | SMF series | |
| 400W series | SMA | P4SMAJ series |
